TP-Link Switch Omada Easy Smart 16 x 1G Ports TL-SG116E 16 Port

Hover to zoom1/3

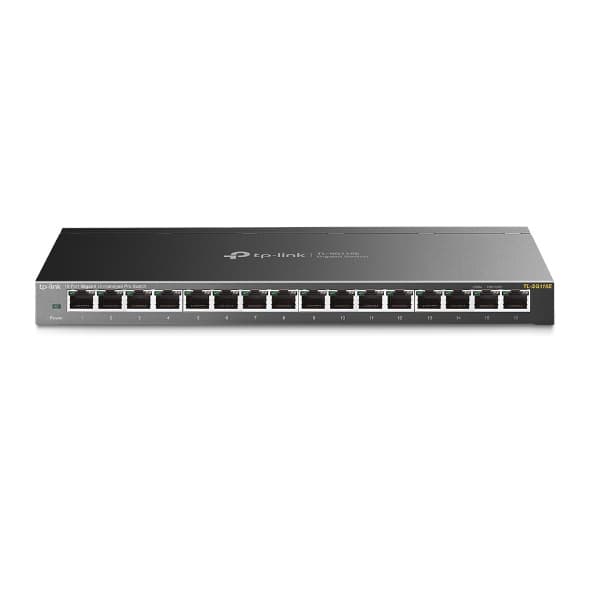

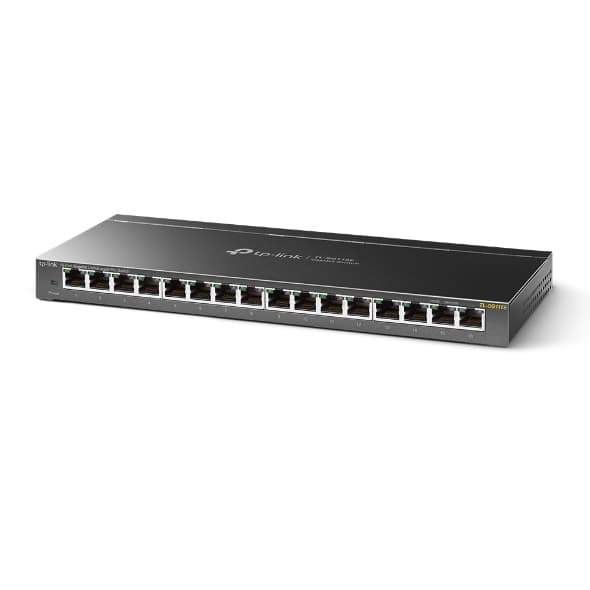

TP-Link 16-Port Gigabit Unmanaged Pro Switch

Part number: 1089092
MPN: TL-SG116E
EAN: 1210002617000

TP-Link 16-Port Gigabit Unmanaged Pro Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Switch type	Unmanaged
Switch layer	L2

Description

TP-Link 16-Port Gigabit Unmanaged Pro Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	16

Network

Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Number of VLANs	32

Data transmission

MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB

Security

IGMP snooping	Yes
Loop protection	Yes

Design

Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes

Performance

Plug and Play	Yes

Power

Power source	DC
Power supply included	Yes
Input current	1 A
Input voltage	12 V
Power consumption (max)	9.19 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	31.68 BTU/h

Weight & dimensions

Width	286 mm
Depth	111.7 mm
Height	25.4 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Packaging data

AC adapter included	Yes
Rubber feet	Yes
Package width	170 mm
Package depth	412 mm
Package height	70 mm
Package weight	1.36 kg

Certificates

Certification	FCC, CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	1.37 kg
