TP-Link PoE++ Switch L2+ Switch 6 x 10G Ports SX3206HPP 6 Port1/6
TP-Link

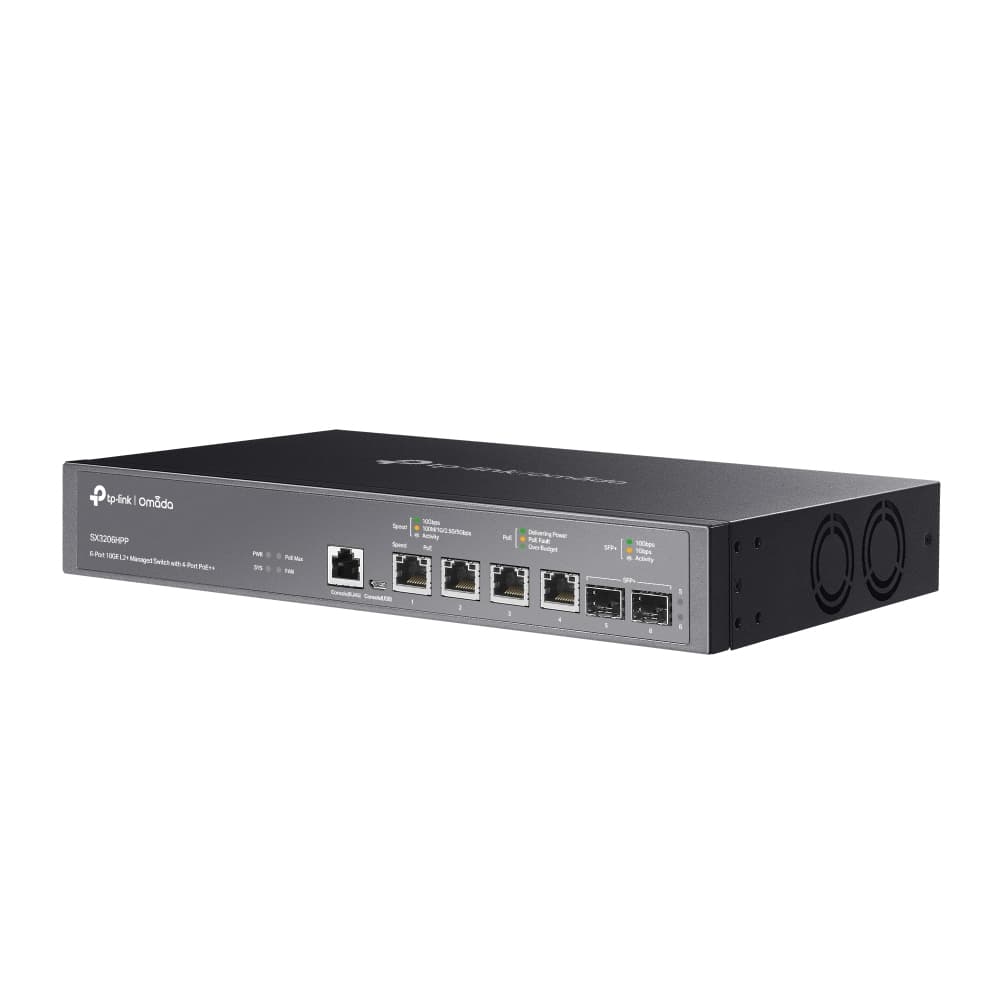

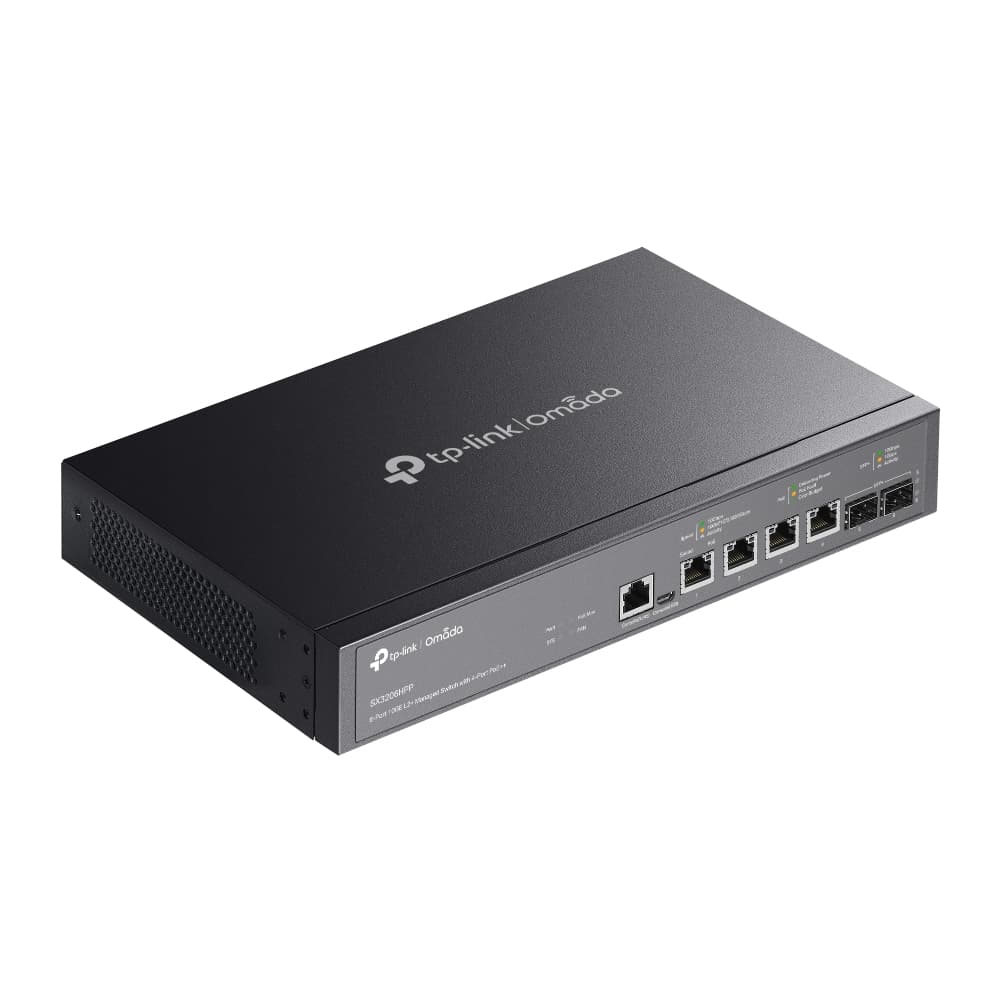

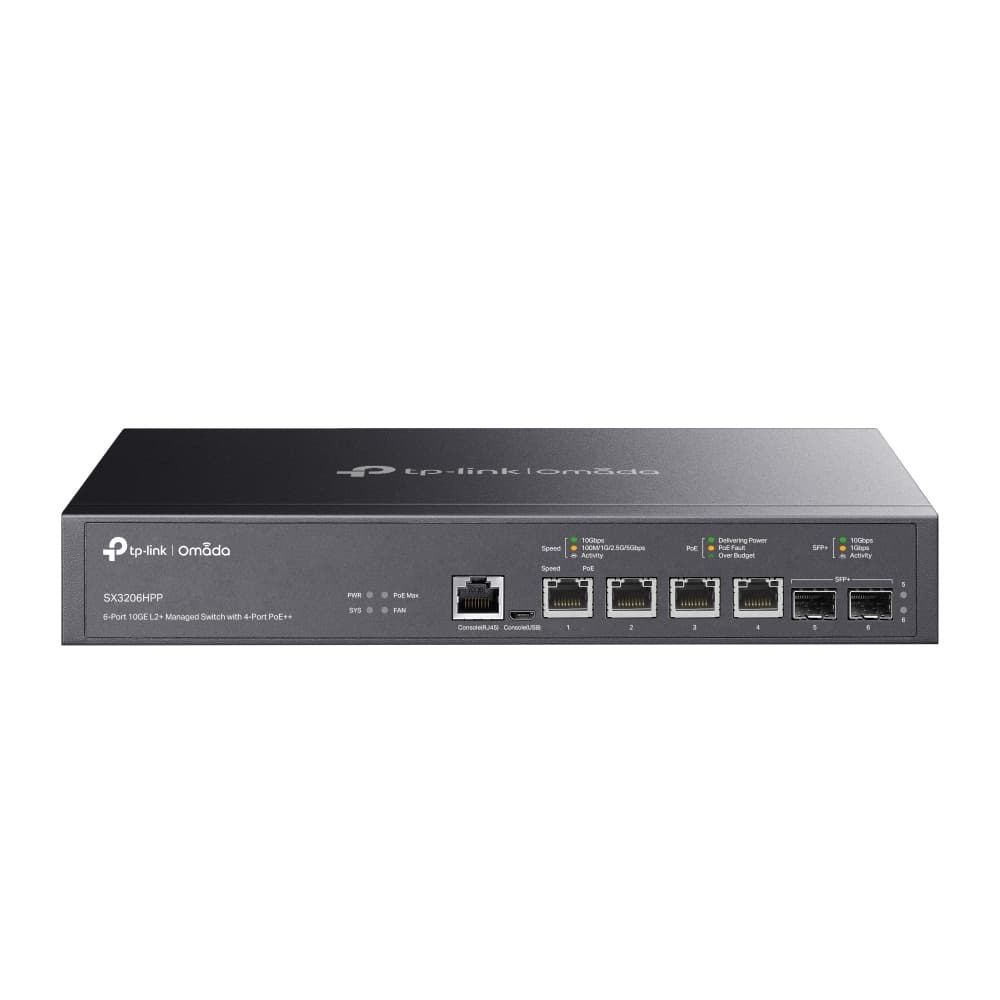

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

Part number
1626217
MPN
SX3206HPP
EAN
6935364006617

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting

SFP Anschlüsse0
Montage Switch19" Rack, Desktop
SFP+ Anschlüsse2
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed
Switch typeManaged
Switch layerL2+
All 82 specifications

Description

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 120 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Documents

Specifications

SFP Anschlüsse0
Montage Switch19" Rack, Desktop
SFP+ Anschlüsse2
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity2
Console portRJ-45/Micro-USB

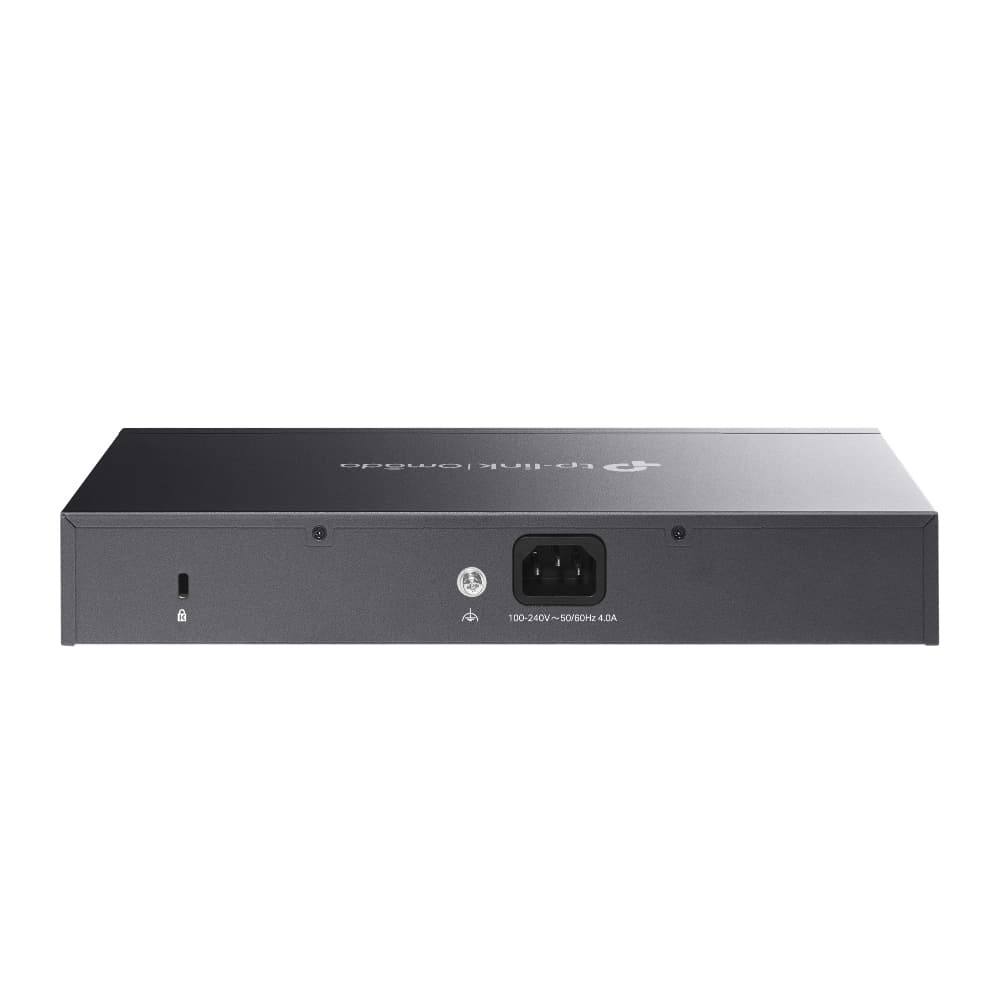

Power connectorAC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G supportYes
Port mirroringYes
IP routingYes
Routing entries512
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs4000

Data transmission

MAC address table32000 entries
Switching capacity120 Gbit/s
Forwarding rate89.28 Mpps
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory16 MB

Security

DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsHTTPS, SSL/TLS
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN
Authentication typeAAA, RADIUS, TACACS+

Multicast features

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingMLD v1/v2

Protocols

Management protocolsSNMP v1/v2c/v3

Design

Rack mountingYes
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)

Performance

Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)244.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port60 W
Total Power over Ethernet (PoE) budget200 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation835.67 BTU/h

Weight & dimensions

Width294 mm
Depth180 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes
Rack mount kitYes

Certificates

CertificationCE, FCC, RoHS
Weight2.87 kg
